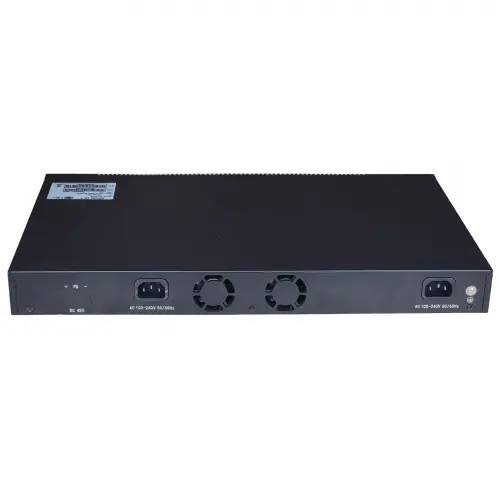

Corelink CW8X-2P 8-Port 10G G-EPON OLT
Description
Corelink CW8X-2P 8-Port 10G G-EPON OLT – High-Performance Fiber Access Solution
The Corelink 8-Port 10G EPON OLT is a compact, high-performance 1U Optical Line Terminal designed for FTTH (Fiber to the Home) networks. Ideal for ISPs and fiber providers in Bangladesh, this OLT ensures stable, reliable, and high-speed broadband connectivity for urban and remote areas. Supporting up to 512 users with a 1:64 split ratio, it provides seamless scalability for modern fiber networks in 2025.
Equipped with 4× 10G SFP+ uplink ports and 4× 1G RJ45 uplink interfaces, it guarantees high-speed data transmission and smooth broadband expansion. Its cloud-based management, along with CLI, WEB UI, and SNMP support, simplifies deployment and reduces operational costs. The 1U compact design allows easy rack installation while keeping energy consumption below 40W.
Key Features:
-
8 EPON Ports – Supports up to 512 users with 1:64 split ratio.
-
High-Speed Uplink – 4× 10G SFP+ and 4× 1G RJ45 ports for ultra-fast data transfer.
-
Management Options – CLI, WEB UI, SNMP, and cloud-based management.
-
Compact 1U Design – Easy rack mounting with minimal space usage.
-
Energy Efficient – Low power consumption (<40W) and reliable operation.
Technical Specifications:
-
Interfaces: 8× EPON, 4× 10/100/1000M RJ45, 4× 10G SFP+
-
PON Standard: 1000BASE-PX20+/PX20++/PX20+++, 1:64 split ratio
-
Memory: Flash 32MB, DDR 256MB
-
Dimensions: 442mm × 260mm × 44mm, Weight <5kg
-
Operating Temperature: -10°C to 60°C
-
Storage Temperature: -40°C to 80°C
-
Power Supply: AC 100V–240V 50/60Hz
Technical Description:
|
Item |
CW8X-2P |
|
Interface |
8*EPON |
|
4*10/100/1000M RJ45 |
|
|
4*10G SFP+ |
|
|
PON |
Physical Interface: PON SFP Slots |
|
Type: 1000 BASE - PX20+/PX20++/PX20+++ |
|
|
Max splitting ratio: 1: 64 |
|
|
Flash |
32 MB |
|
DDR |
256 MB |
|
Size |
442mm x 260mm x 44mm |
|
Weight |
＜5kg |
|
Standard |
IEEE802.3ah EPON |
|
IEEE802.3 (10Base-T) |
|
|
IEEE802.3u (100Base-TX) |
|
|
IEEE802.3z (1000BASE-X) |
|
|
IEEE802.3ab (1000Base-T) |
|
|
IEEE802.1Q (VLAN) |
|
|
Management Ports |
Console port/NMS port |
|
Environment |
Operating temperature: -10°C~60°C |
|
Storage temperature: -40°C~80°C |
|
|
Storage humidity: 5%~95% (non-condensing) |
|
|
Power Supply |
AC: 100V-240V 50/60Hz |
|
Power Consumption |
＜40W |
|
PON Function |
Support auto register |
|
Blacklist and whitelist onu |
|
|
DBA configure |
|
|
P2P |
|
|
ONU authorization |
|
|
Platform Management Features |
Device list |
|
Project management |
|
|
Version Release |
|
|
License management |
|
|
Permission management |
|
|
User management |
|
|
Configuration and Management |
CLI, WEB, SNMP/NMS, CLOUD |
|
Software and firmware upgrade |
|
|
Chinese/English command prompt |
|
|
Support Ping and debug diagnostic function |
|
|
User, log and alarm management |
|
|
L3 Function |
Support Static Routing |
|
Support DHCP Server, DHCP Snooping and DHCP Relay |
|
|
Support OSFP |
|
|
L2 Function |
Supports VLAN, VLAN Translation and QinQ |
|
Supports up to 4094 VLANs |
|
|
Support Port Mirroring |
|
|
Supports RSTP and MSTP (recovery time<1s) |
|
|
Supports link aggregation (recovery time<10ms) |
|
|
Storm control support |
|
|
Support IGMP snooping/proxy |
|
|
Support port isolation |
|
|
Support ACL access control based on data flow |
|
|
Supports QoS based on port, VID, TOS and MAC address |
|
|
Support PON port transmission data encryption |
Applications
Perfect for FTTx networks, smart industrial parks, commercial buildings, and rural broadband. Compatible with various ONUs.Why Choose Corelink CW8X-2P?
- Reliable and scalable for ISPs.- High user capacity with efficient bandwidth.
- Cost-effective FTTH solution.
Frequently Asked Questions (FAQs)
Q1: How many users can the Corelink 8-Port 10G OLT support?
A: It can support up to 512 users using a 1:64 split ratio.
Q2: Does it support 10G uplinks?
A: Yes, the OLT comes with 4× 10G SFP+ ports and 4× 1G RJ45 ports for high-speed connectivity.
Q3: Can this OLT be managed remotely?
A: Yes, it supports CLI, WEB UI, SNMP, and cloud-based management for flexible remote operation.
Q4: What type of deployment is this OLT suitable for?
A: It is ideal for FTTH networks, broadband expansion for ISPs, and fiber access in both urban and rural areas.
Q5: How much power does it consume?
A: The Corelink CW8X-2P consumes less than 40W, making it energy-efficient.
Q6: Is it easy to install in a standard rack?
A: Yes, its 1U compact design allows easy installation in standard 19-inch racks.
Q7: What are the operating conditions for this OLT?
A: Operating temperature: -10°C to 60°C, Storage temperature: -40°C to 80°C.
