Mini 3G SDI to HDMI Converter
- Model#
- 3G-converter
- Brand
- OEM
- Category
- Live Streaming Hardware
- Sub Category
- HDMI Converter
- Warranty
- Not Available
- Service
- Not Available
৳ 5,000
৳ 5,500
9% Off* বর্তমানে আইটি পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য বাড়তে পারে। *
How To Order: Over Phone, Email or Checkout in website. We Will Contact You Soon.
Mini 3G SDI to HDMI Converter with Audio –
SD/HD/3G-SDI to HDMI Adapter for Video & Embedded Audio Output
The
MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be
shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give
you fast signal transmission without any loss. For professionals this means
that it is now easier to distribute and extend your 3G SDI signal while giving
you the ability to display your work on HDMI displays thanks to the built in
HDMI converter.
Features
1. Operation at 2.970Gbit/s,
1.485Gbit/s and 270Mbits/s
1. 2 Supports SMPTE 425M, SMPTE 424M,
SMPTE 292M, SMPTE 259M-C
2. Equalized and re-clocked loop
output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio
3. Conversion from SMPTE 425M level B
to Level A 1080p 50/59.94/60 4:2:2 10-bit
4. Connect with other units to extend
your signal over long distances
Package
1. 3G SDI to HDMI Converter --- 1PCS
2. 5V DC Power Supply Adaptor --- 1PCS
3. Operation Manual --- 1PCS

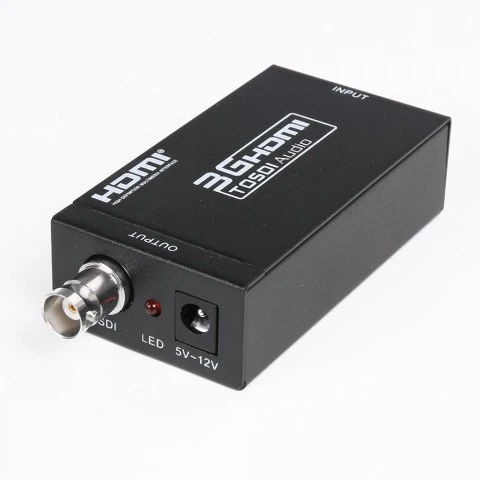

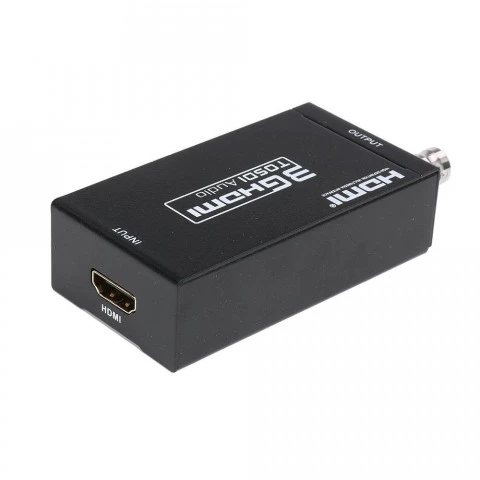

Operation controls
and Functions
1. SDI IN: This slot is where you
connect the SDI source output.
2. POWER LED: This red LED illuminate
when the device is connected with power supply
3. HDMI OUT: This slot is where you
connect the HDMI display with HDMI cable.
4. DC IN: Plug the 5V-12V DC power
supply into the unit.
Technical
Specification
|
Specification |
Details |
|
Input
Port |
1
x BNC (SDI/HD-SDI/3G-SDI) |
|
Output
Port |
1
x HDMI |
|
SDI
Transmission Rates |
2.970
Gbit/s and 2.970/1.001 Gbit/s |
|
In/Output
Resolution |
480i,
576i, 720p@50/59.94/60, 1080i@50/59.94/60 |
|
1080p@23.97/24/25/29.97/30/50/59.94/60 |
|
|
Power
Supply |
DC
5V - 12V |
|
ESD
Protection (Human body) |
±8kV
(air-gap discharge), ±4kV (contact discharge) |
|
Dimension |
80mm
x 41mm x 25mm |
|
Weight |
150g |
|
Operating
Temperature |
0°C
~ 40°C / 32°F ~ 104°F |
|
Storage
Temperature |
-20°C
~ 60°C / -4°F ~ 140°F |
|
Relative
Humidity |
20%
~ 90% RH (Non-condensing) |
|
Power
Consumption (Max) |
5W |
